ABS Grade AH40,ABS Grade AH40 steel,ABS Grade AH40 steel prices

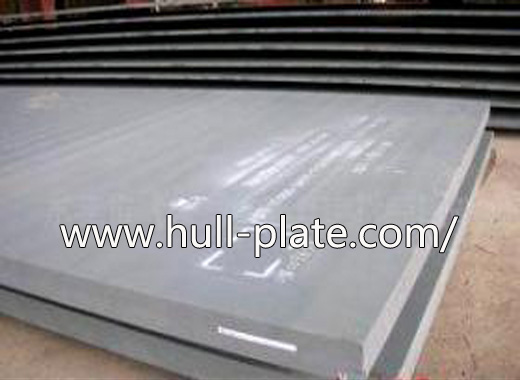

ABS AH40 shipbuilding steel with good toughness properties,higher strength.ABS AH40 shipbuilding steel are mainly used to contribute hull of ships and the cranes of break bulker and vessels in low temperature oceans.All of our stock is the high quality ABS AH40 shipbuilding steel plate.Shanghai Royal Industry has a large number of stocks.
ABS AH40, AB/AH40 ABS AH40 Z15, ABS AH40 Z25,ABS AH40 Z35 chemical composition in shipbuilding steel plate, angle steel bar, bulb flat bar, L section steel bar
|
Grade |
C max |
Si max |
Mn |
P max |
S max |
Als min |
Ti max |
Cu max |
Cr max |
Ni max |
Mo max |
Nb |
V |
N max |
|
AH40 |
0.18 |
0.50 |
0.90-1.60 |
0.035 |
0.035 |
0.015 |
0.02 |
0.35 |
0.20 |
0.40 |
0.08 |
0.02-0.05 |
0.05-0.10 |
|
Note: Generally speaking CE will be ≤ 0.40%. If the delivery condition is TMPC, the CE will be : ≤ 0.36% (thickness ≤ 50mm),≤0.38%( when the thickness > 50-100).
Ceq% =(C+Mn)/6+(Cr+Mo+V)/5+(Ni+Cu)/15.
ABS AH40, AB/AH40 ABS AH40 Z15, ABS AH40 Z25,ABS AH40 Z35
Mechanical Property in shipbuilding steel plate, angle steel bar, bulb flat bar, L section steel bar
|
Grade |
Rm (MPa) |
Re(MPa) min |
A% min |
Akv/J min |
||||||
|
E.T °C |
Thickness (mm) |
|||||||||
|
≤ 50 |
> 50-70 |
> 70-100 |
||||||||
|
L |
C |
L |
C |
L |
C |
|||||
|
AB/AH40 |
510-660 |
390 |
20 |
0 |
41 |
27 |
- |
- |
- |
- |
ABS AH40, AB/AH40 ABS AH40 Z15, ABS AH40 Z25,ABS AH40 Z35
shipbuilding steel plate, angle steel bar, bulb flat bar, L section steel bar delivery condition :
|
Grade |
Fine grains elements |
category |
The thickness of steel |
|||||
|
≤ 12 |
> 12.5-20 |
> 20-25 |
> 25-35 |
> 35-50 |
> 50-100 |
|||
|
AH40 |
any |
Plate/sheet |
A(50) |
N(50),CR(50),TM(50) |
-
|
|||
Shanghai Royal Industry keeps more than 10,000 tons hot rolled and cold rolled ABS AH40, AB/AH40 shipbuilding steel in stock each month. We can meet our customer’s any quantity request. Based on these stock source, our advantage industry spread into steel process like : cutting ( any size and any shape ) drilling, welding, milling, machining and steel structure.
We also have a high quality logistics team who make sure the fast delivery time and shipment. Anyway, if you want to find ABS AH40, AB/AH40 shipbuilding steel plate/sheet/angle bar/bulb flat bar/ L section steel bar supplier, ABS AH40, AB/AH40 shipbuilding steel plate/sheet/angle bar/bulb flat bar/ L section steel bar manufacturer, ABS AH40, AB/AH40 shipbuilding steel plate/sheet/angle bar/bulb flat bar/ L section steel bar exporter, please contact Shanghai Royal Industry's sales team. We will give you the ABS AH40, AB/AH40 shipbuilding steel plate/sheet/angle bar/bulb flat bar/ L section steel bar competitive price, ABS AH40, AB/AH40 shipbuilding steel plate/sheet/angle bar/bulb flat bar/ L section steel bar good quality and best service from us.
